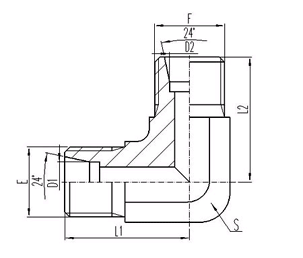

Product Name: 1C9 90¡ãELBOW FITTINGS
Prouduct Model:1C9
Product Category:EATON STANDARD
Product Description::


THREAD

TUBE O.D.

DIMENSIONS

PART NO.

E

F

D1

D2

L1

L2

S

1C9-12

M12X1.5

M12X1.5

6

6

20.8

20.8

11

1C9-14

M14X1.5

M14X1.5

8

8

25.3

25.3

14

1C9-16

M16X1.5

M16X1.5

10

10

27.2

27.2

16

1C9-18

M18X1.5

M18X1.5

12

12

28.5

28.5

19

1C9-22

M22X1.5

M22X1.5

15

15

30.5

30.5

22

1C9-26

M26X1.5

M26X1.5

18

18

35.5

35.5

27

1C9-30

M30X2

M30X2

22

22

41

41

30

1C9-36

M36X2

M36X2

28

28

44.7

44.7

36

1C9-45

M45X2

M45X2

35

35

52.5

52.5

48

1C9-52

M52X2

M52X2

42

42

58.5

58.5

55

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix “RN�after our part No. ,for example �C9-12RN�
