THREAD

TUBE O.D

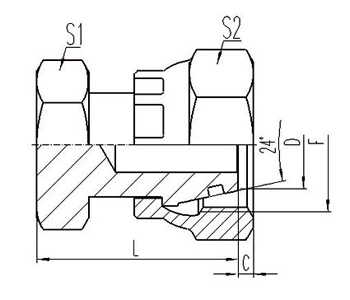

DIMENSIONS

PART NO.

F

D1

B

L

S1

S2

9D-14

M14X1.5

6

1.5

24.5

19

19

9D-16

M16X1.5

8

1.5

24.5

19

22

9D-18

M18X1.5

10

2

24.5

22

24

9D-20

M20X1.5

12

2.5

27

27

27

9D-22

M22X1.5

14

2.5

27

27

27

9D-24

M24X1.5

16

2.5

29

30

30

9D-30

M30X2

20

3

33

36

36

9D-36

M36X2

25

3

33.5

41

41

9D-42

M42X2

30

5

37

50

50

9D-52

M52X2

38

6.5

39

60

60
