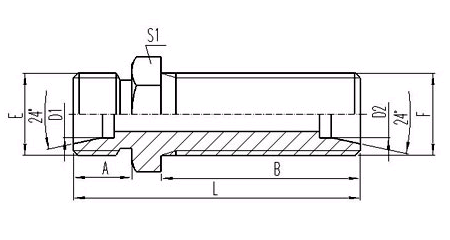

Product Name: 6C STRAIGHT BULKHEAD FITTINGS
Prouduct Model:6C
Product Category:EATON STANDARD
Product Description::



THREAD

TUBE O.D.

DIMENSIONS

PART NO.

E

F

D1

D2

A

B

S1

L

6C-14

M14X1.5

M14X1.5

8

8

13

34

19

53

6C-16

M16X1.5

M16X1.5

10

10

13.5

35

22

57

6C-18

M18X1.5

M18X1.5

12

12

13.5

36

24

58

6C-22

M22X1.5

M22X1.5

15

15

13.5

38

27

62

6C-26

M26X1.5

M26X1.5

18

18

14

40

32

65

6C-30

M30X2

M30X2

22

22

18

42

36

71

6C-36

M36X2

M36X2

28

28

18

43

41

75

6C-45

M45X2

M45X2

35

35

19

47

50

81

6C-52

M52X2

M52X2

42

42

19

47

60

81

Note: In case if you are interested to order the adapter with lock nut, please insert suffix LN after our part No. ,for example 6C-14LN;order the adapter with cutting ting and nut ,insert suffix RN after part No. ,for example 6C-14RN;order the adapter with lock nut and cutting ring and cut ,insert suffix LNRN after part No. ,for example 6C-14LNRN?
