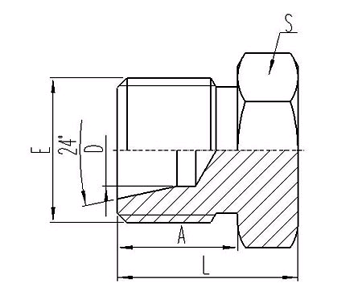

| THREAD | TUBE O.D | DIMENSIONS | ||
PART NO. | F | D1 | A | L | S |
4D-14 | M14X1.5 | 6 | 13.5 | 19.5 | 15 |
4D-16 | M16X1.5 | 8 | 13.5 | 19.5 | 17 |
4D-18 | M18X1.5 | 10 | 13.5 | 19.5 | 19 |
4D-20 | M20X1.5 | 12 | 13.5 | 21.5 | 22 |
4D-22 | M22X1.5 | 14 | 14 | 22 | 24 |
4D-24 | M24X1.5 | 16 | 14 | 24 | 27 |
4D-30 | M30X2 | 20 | 19 | 30 | 32 |
4D-36 | M36X2 | 25 | 20 | 31 | 38 |
4D-42 | M42X2 | 30 | 20 | 33 | 46 |
4D-52 | M52X2 | 38 | 22 | 37 | 55 |
?:,?¡°RN¡±,?¡°4D-14RN¡±
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix ¡°RN¡± after our part No. ,for example ¡°4D-14RN¡±
