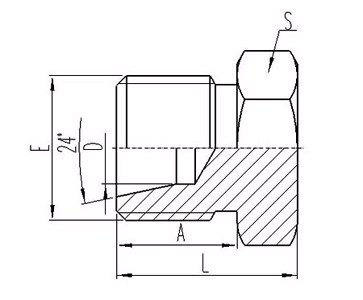

| THREAD | TUBE O.D | DIMENSIONS | ||
PART NO. | E | D | A | L | S |
4C-12 | M12X1.5 | 6 | 10.7 | 16.5 | 14 |
4C-14 | M14X1.5 | 8 | 13 | 19 | 15 |
4C-16 | M16X1.5 | 10 | 13.5 | 19.5 | 17 |
4C-18 | M18X1.5 | 12 | 13.5 | 19.5 | 19 |
4C-22 | M22X1.5 | 15 | 13.5 | 21.5 | 24 |
4C-26 | M26X1.5 | 18 | 14 | 24 | 27 |
4C-30 | M30X2 | 22 | 18 | 29 | 32 |
4C-36 | M36X2 | 28 | 18 | 29 | 38 |
4C-45 | M45X2 | 35 | 19 | 32 | 46 |
4C-52 | M52X2 | 42 | 19 | 34 | 55 |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix ¡°RN¡± after our part No. ,for example ¡°4C-12RN¡±
