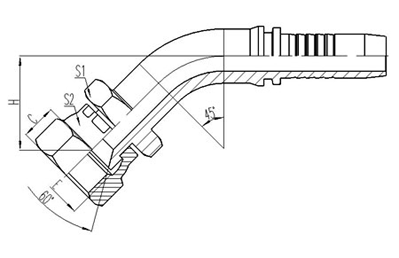

Product Name: 28641 45JIS METRIC FEMALE 60CONE SEAT SEAL
Prouduct Model:28641
Product Category:EATON STANDARD
Product Description::


E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

A

C

H

S1

S2

28641-14-04

M14X1.5

6

04

43.4

10.5

21.3

19

19

28641-16-05

M16X1.5

8

05

47.6

10

24.3

22

22

28641-18-06

M18X1.5

10

06

49.2

11.5

24.9

24

24

28641-22-08

M22X1.5

12

08

62.1

14

27.2

27

27

28641-24-10

M24X1.5

16

10

74.7

15

29.9

32

32

28641-30-12

M30X1.5

20

12

80.9

18.3

33.5

36

36

28641-33-16

M33X1.5

25

16

89.9

21.3

35.7

41

41

28641-36-20

M36X1.5

32

20

104.1

20

41.9

46

46

28641-42-24

M42X1.5

38

24

116.2

18.8

45.5

50

55

Note:1.For use with braided hoses. 2.If use with spiral hoses, hose fitting seried number is 28642-XX-XX
