THREAD

TUBE O.D.

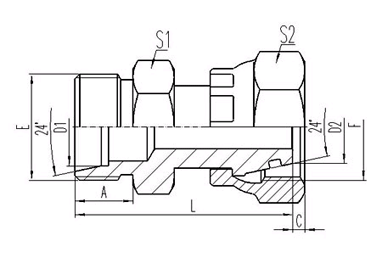

DIMENSIONS

PART NO.

E

F

D1

D2

A

C

S1

S2

L

2C-14-16

M14X1.5

M16X1.5

8

10

13

2

17

22

40

2C-14-18

M14X1.5

M18X1.5

8

12

13

2.5

17

24

41

2C-16-18

M16X1.5

M18X1.5

10

12

13.5

2.5

17

24

41.5

2C-16-22

M16X1.5

M22X1.5

10

15

13.5

2.5

22

27

46

2C-18-22

M18X1.5

M22X1.5

12

15

13.5

2.5

22

27

46

2C-18-26

M18X1.5

M26X1.5

12

18

13.5

2.5

27

32

49.5

2C-22-26

M22X1.5

M26X1.5

15

18

13.5

2.5

27

32

49.5

2C-22-30

M22X1.5

M30X2

15

22

13.5

4

30

36

52.5

2C-26-30

M26X1.5

M30X2

18

22

14

4

30

36

53

2C-26-36

M26X1.5

M36X2

18

28

14

4

36

41

54

2C-30-36

M30X2

M36X2

22

28

18

4

36

41

58

2C-30-45

M30X2

M45X2

22

35

18

5

46

55

65.5

2C-36-30

M36X2

M30X2

28

22

18

4

41

36

60

2C-36-45

M36X2

M45X2

28

35

18

5

46

55

65.5

2C-36-52

M36X2

M52X2

28

42

18

5.5

50

60

69

2C-45-52

M45X2

M52X2

35

42

19

5.5

50

60
