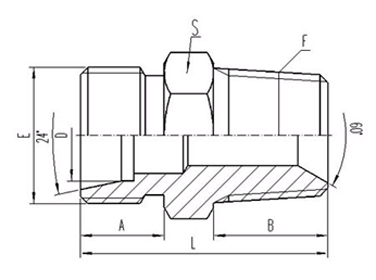

THREAD

TUBE O.D.

DIMENSIONS

PART NO.

E

F

D

A

B

L

S1

1DT-14-04SP

M14X1.5

R1/4"X19

6

13.5

14.5

34

17

1DT-16-04SP

M16X1.5

R1/4"X19

8

13.5

14.5

34

17

1DT-18-04SP

M18X1.5

R1/4"X19

10

13.5

14.5

34

19

1DT-20-04SP

M20X1.5

R1/4"X19

12

13.5

14.5

36

22

1DT-20-06SP

M20X1.5

R3/8"X19

12

13.5

15

37

22

1DT-22-06SP

M22X1.5

R3/8"X19

14

14

15

37

24

1DT-22-08SP

M22X1.5

R1/2"X14

14

14

20

42

24

1DT-24-06SP

M24X1.5

R3/8"X19

16

14

15

39

27

1DT-24-08SP

M24X1.5

R1/2"X14

16

14

20

44

27

1DT-30-12SP

M30X2

R3/4"X14

20

19

20

50

32

1DT-36-12SP

M36X2

R3/4"X14

25

20

20

51

38

1DT-36-16SP

M36X2

R1"X11

25

20

25.5

57

38

1DT-42-16SP

M42X2

R1"X11

30

20

25.5

59

46

1DT-42-20SP

M42X2

R1.1/4"X11

30

20

26.5

60

46

1DT-52-20SP

M52X2

R1.1/4"X11

38

22

26.5

64

55

1DT-52-24SP

M52X2

R1.1/2"X11

38

22

26.5

64

55
