Product Name: 50091 90��METRIC STANDPIPE STRAIGHT DIN

Prouduct Model:50091

Product Category:EATON STANDARD

Product Description:：

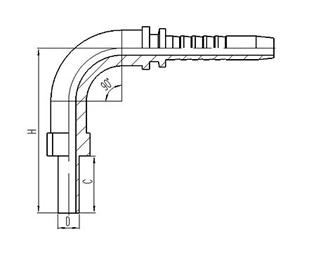

	D TUBE O.D.	HOSE BORE		DIMENSIONS
PART NO.	D TUBE O.D.	DN	DASH	C	H
50091-06-04	6	6	04	19	50
50091-06-06	6	10	06	19	55.25
50091-08-04	8	6	04	19	50
50091-08-05	8	8	05	19	53.5
50091-10-04	10	6	04	22	51.5
50091-10-06	10	10	06	22	58.8
50091-12-06	12	10	06	22	58.8
50091-14-06	14	10	06	22	58.8
50091-14-08	14	12	08	22	65
50091-16-08	16	12	08	22	65
50091-16-10	16	16	10	22	69.5
50091-18-10	18	16	10	24	72.5
50091-18-12	18	20	12	24	82
50091-22-14	22	22	14	28	88
50091-28-16	28	25	16	30	95.5
50091-34-20	34	32	20	33	108.5
50091-42-20	42	32	20	35	127
50091-42-24	42	38	24	35	127

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 50092-xx-xx;
