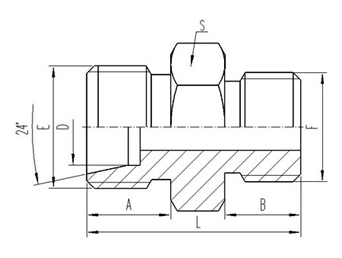

THREAD | TUBE O.D. | DIMENSIONS | |||||
PART NO. | E | F | D | A | B | L | S |
1CO-14-04 | M14X1.5 | 7/16"X20 | 8 | 13 | 9.14 | 28 | 15 |
1CO-16-04 | M16X1.5 | 7/16"X20 | 10 | 13.5 | 9.14 | 29 | 17 |
1CO-18-06 | M18X1.5 | 9/16"X18 | 12 | 13.5 | 9.93 | 30 | 19 |
1CO-18-08 | M18X1.5 | 3/4"X16 | 12 | 13.5 | 11.1 | 33 | 22 |
1CO-18-10 | M18X1.5 | 7/8"X14 | 12 | 13.5 | 12.7 | 36 | 27 |
1CO-22-08 | M22X1.5 | 3/4"X16 | 15 | 13.5 | 11.1 | 33 | 24 |
1CO-22-10 | M22X1.5 | 7/8"X14 | 15 | 13.5 | 12.7 | 36 | 27 |
1CO-26-08 | M26X1.5 | 3/4"X16 | 18 | 14 | 11.1 | 35 | 27 |
1CO-26-10 | M26X1.5 | 7/8"X14 | 18 | 14 | 12.7 | 37 | 27 |
1CO-30-10 | M30X2 | 7/8"X14 | 22 | 18 | 12.7 | 42 | 32 |
1CO-30-12 | M30X2 | 1.1/16"X12 | 22 | 18 | 15.1 | 44 | 32 |
1CO-36-12 | M36X2 | 1.1/16"X12 | 28 | 18 | 15.1 | 44 | 38 |
1CO-36-16 | M36X2 | 1.5/16"X12 | 28 | 18 | 15.1 | 44 | 38 |
1CO-42-16 | M42X2 | 1.5/16"X12 | 32 | 19 | 15.1 | 47 | 46 |
1CO-52-20 | M52X2 | 1.5/8"X12 | 42 | 19 | 15.1 | 49 | 55 |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix ¡°RN¡± after our part No. ,for example ¡°1CO-14-04RN¡±
