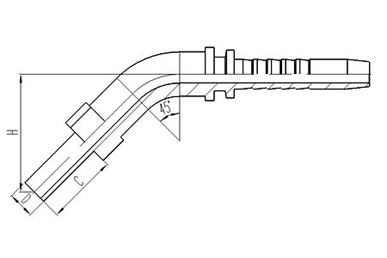

Product Name: 50041 45METRIC STANDPIPE STRAIGHT DIN
Prouduct Model:50041
Product Category:EATON STANDARD
Product Description::



D TUBE O.D.

HOSE BORE

DIMENSIONS

PART NO.

DN

DASH

C

H

50041-06-04

6

6

04

19

29.4

50041-08-05

8

8

05

19

31

50041-10-06

10

10

06

22

33.8

50041-12-06

12

10

06

22

33.8

50041-14-06

14

10

06

22

33.8

50041-14-08

14

12

08

22

36

50041-16-10

16

16

10

22

37.3

50041-18-12

18

20

12

24

43.1

50041-22-14

22

22

14

28

46.1

50041-28-16

28

25

16

30

49.5

50041-34-20

34

32

20

33

55

50041-42-24

42

38

24

35

62.5

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 50042-xx-xx;
