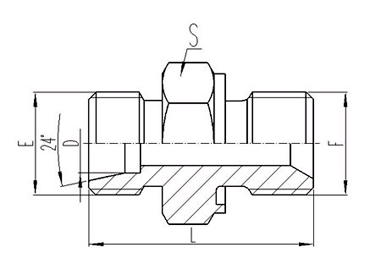

THREAD | DIMENSIONS | ||||
PART NO. | E | F | TUBE.O.D. | L | S |
1DM-14-12WD | M14X1.5 | M12X1.5 | 6 | 32 | 17 |
1DM-16-14WD | M16X1.5 | M14X1.5 | 8 | 34 | 19 |
1DM-18-16WD | M18X1.5 | M16X1.5 | 10 | 34.5 | 22 |
1DM-20-18WD | M20X1.5 | M18X1.5 | 12 | 36.5 | 24 |
1DM-22-20WD | M22X1.5 | M20X1.5 | 14 | 41 | 27 |
1DM-24-22WD | M24X1.5 | M22X1.5 | 16 | 41 | 27 |
1DM-30-27WD | M30X2 | M27X2 | 20 | 47 | 32 |
1DM-36-33WD | M36X2 | M33X2 | 25 | 53 | 41 |
1DM-42WD | M42X2 | M42X2 | 30 | 57 | 50 |
1DM-52-48WD | M52X2 | M48X2 | 38 | 95 | 55 |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example 1DM-14-12WDRN
