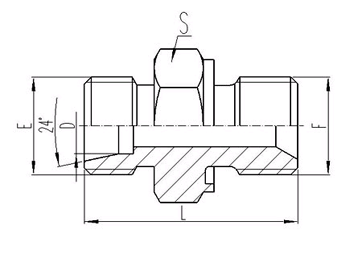

Product Name: 1CM-WD METRIC THREAD WITH CAPTIVE SEAL
Prouduct Model:1CM-WD
Product Category:EATON STANDARD
Product Description::



THREAD

D

DIMENSIONS

PART NO.

E

F

TUBE.O.D.

L

S

1CM-12-10WD

M12X1.5

M10X1

6

23.5

14

1CM-14-12WD

M14X1.5

M12X1.5

8

29

17

1CM-16-12WD

M16X1.5

M12X1.5

10

30

17

1CM-16-14WD

M16X1.5

M14X1.5

10

30

19

1CM-16-18WD

M16X1.5

M18X1.5

10

31.5

24

1CM-18-16WD

M18X1.5

M16X1.5

12

31

22

1CM-18WD

M18X1.5

M18X1.5

12

31.5

24

1CM-18-22WD

M18X1.5

M22X1.5

12

35

27

1CM-22-18WD

M22X1.5

M18X1.5

15

32.5

24

1CM-22WD

M22X1.5

M22X1.5

15

36

27

1CM-26-22WD

M26X1.5

M22X1.5

18

34

27

1CM-30-26WD

M30X2

M26X1.5

22

40

32

1CM-30-27WD

M30X2

M27X1.5

22

42

32

1CM-36-33WD

M36X2

M36X2

28

41

41

1CM-45-42WD

M45X2

M42X2

35

41

50

1CM-52-48WD

M52X2

M52X2

42

52

55

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example 1CM-12-10WDRN
