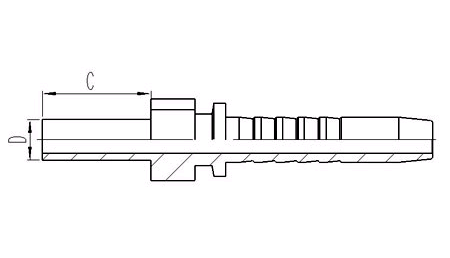

D | HOSE BORE | DIMENSIONS | |||
PART NO. | TUBE O.D. | DN | DASH | C | |
50011-04-03 | 4 | 5 | 03 | 17 | |
50011-06-03 | 6 | 5 | 03 | 19 | |
50011-06-04 | 6 | 6 | 04 | 19 | |
50011-08-04 | 8 | 6 | 04 | 19 | |
50011-08-05 | 8 | 8 | 05 | 19 | |
50011-08-06 | 8 | 10 | 06 | 19 | |
50011-10-04 | 10 | 6 | 04 | 22 | |
50011-10-06 | 10 | 10 | 06 | 22 | |
50011-12-06 | 12 | 10 | 06 | 22 | |
50011-12-08 | 12 | 12 | 08 | 22 | |
50011-14-06 | 14 | 10 | 06 | 22 | |
50011-14-08 | 14 | 12 | 08 | 22 | |
50011-16-08 | 16 | 12 | 08 | 22 | |
50011-16-10 | 16 | 16 | 10 | 22 | |
50011-16-12 | 16 | 20 | 12 | 22 | |
50011-18-08 | 18 | 12 | 8 | 24 | |
50011-18-12 | 18 | 20 | 12 | 24 | |
50011-22-12 | 22 | 20 | 12 | 28 | |
50011-22-14 | 22 | 22 | 14 | 28 | |
50011-28-16 | 28 | 25 | 16 | 30 | |
50011-34-20 | 34 | 32 | 20 | 33 | |
50011-42-24 | 42 | 38 | 24 | 35 | |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 50012-xx-xx;
