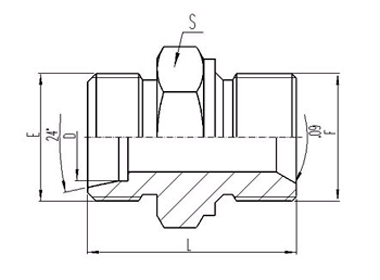

Product Name: 1DM METRIC MALE 60SEAT SEALING OR BONDED SEAL STUD ENDS
Prouduct Model:1DM
Product Category:EATON STANDARD
Product Description::

THREAD

D

DIMENSIONS

PART NO.

E

F

TUBE O.D.

L

S

1DM-14-12

M14X1.5

M12X1.5

6

32

17

1DM-16-14

M16X1.5

M14X1.5

8

34

19

1DM-18-16

M18X1.5

M16X1.5

10

34.5

22

1DM-20-18

M20X1.5

M18X1.5

12

36.5

24

1DM-20-22

M20X1.5

M22X1.5

12

39

27

1DM-22-20

M22X1.5

M20X1.5

14

41

27

1DM-24-18

M24X1.5

M18X1.5

16

38.5

27

1DM-24-22

M24X1.5

M22X1.5

16

41

27

1DM-30-27

M30X2

M27X2

20

47

32

1DM-36-33

M36X2

M33X2

25

53

41

1DM-42

M42X2

M42X2

30

57

50

1DM-52-48

M52X2

M48X2

38

95

60

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example 1DM-14-12RN
