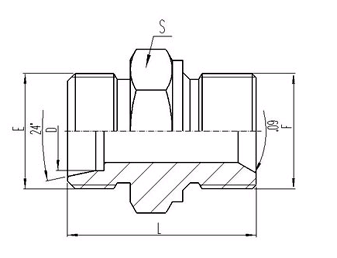

Product Name: 1CM METRIC MALE 60SEAT SEALING OR BONDED SEAL STUD ENDS
Prouduct Model:1CM
Product Category:EATON STANDARD
Product Description::

THREAD

D

DIMENSIONS

PART NO.

E

F

TUBE O.D.

L

S

1CM-12-10

M12X1.5

M10X1

6

23.5

14

1CM-14-12

M14X1.5

M12X1.5

8

29

17

1CM-14-18

M14X1.5

M18X1.5

8

30.5

24

1CM-16-14

M16X1.5

M14X1.5

10

30

19

1CM-16

M16X1.5

M16X1.5

10

31

22

1CM-16-18

M16X1.5

M18X1.5

10

31.5

24

1CM-16-22

M16X1.5

M22X1.5

10

35

27

1CM-18-14

M18X1.5

M14X1.5

12

30

19

1CM-18-16

M18X1.5

M16X1.5

12

31

22

1CM-18

M18X1.5

M18X1.5

12

31.5

24

1CM-18-22

M18X1.5

M22X1.5

12

35

27

1CM-22-16

M22X1.5

M16X1.5

15

32

24

1CM-22-18

M22X1.5

M18X1.5

15

32.5

24

1CM-22

M22X1.5

M22X1.5

15

36

27

1CM-26-18

M26X1.5

M18X1.5

18

33.5

27

1CM-26-22

M26X1.5

M22X1.5

18

34

27

1CM-30-22

M30X2

M22X1.5

22

38

32

1CM-30-26

M30X2

M26X1.5

22

40

32

1CM-30-27

M30X2

M27X1.5

22

42

32

1CM-36-33

M36X2

M33X2

28

41

41

1CM-45-42

M45X2

M42X2

35

48

50

1CM-52-48

M52X2

M52X2

42

52

55

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix RN after our part No. ,for example 1CM-12-10RN
