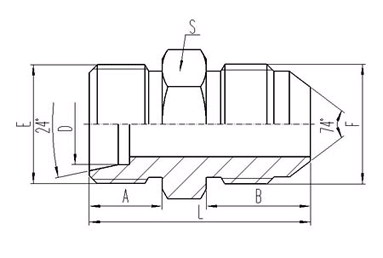

THREAD | TUBE O.D. | DIMENSIONS | |||||
PART NO. | E | F | D | A | B | S | L |
1CJ-14-04 | M14X1.5 | 7/16"X20 | 8 | 13 | 14 | 14 | 33 |
1CJ-14-05 | M14X1.5 | 1/2"X20 | 8 | 13 | 14 | 14 | 33 |
1CJ-14-06 | M14X1.5 | 9/16"X18 | 8 | 13 | 14 | 17 | 33 |
1CJ-16-05 | M16X1.5 | 1/2"X20 | 10 | 13.5 | 14 | 17 | 33.5 |
1CJ-16-05 | M16X1.5 | 9/16"X18 | 10 | 13.5 | 14 | 17 | 33.5 |
1CJ-18-06 | M18X1.5 | 9/16"X18 | 12 | 13.5 | 14 | 19 | 33.5 |
1CJ-18-08 | M18X1.5 | 3/4"X16 | 12 | 13.5 | 16.7 | 22 | 38.5 |
1CJ-22-08 | M22X1.5 | 3/4"X16 | 15 | 13.5 | 16.7 | 22 | 38.5 |
1CJ-22-10 | M22X1.5 | 7/8"X14 | 15 | 13.5 | 19.3 | 24 | 41 |
1CJ-26-10 | M26X1.5 | 7/8"X14 | 18 | 14 | 19.3 | 27 | 43.5 |
1CJ-26-12 | M26X1.5 | 1.1/16"X12 | 18 | 14 | 22 | 30 | 46 |
1CJ-30-12 | M30X2 | 1.1/16"X12 | 22 | 18 | 22 | 32 | 50 |
1CJ-36-16 | M36X2 | 1.5/16"X12 | 28 | 18 | 23 | 38 | 52 |
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix ¡°RN¡± after our part No. ,for example ¡°1CJ-14-04RN¡±
