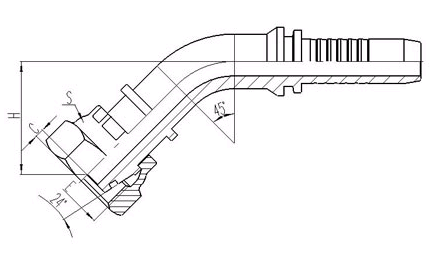

E | HOSE BORE | DIMENSIONS | |||||
PART NO. | THREAD E | DN | DASH | TUBE O.D. | C | H | S |
20541-14-04 | M14X1.5 | 6 | 04 | 6 | 1.1 | 28 | 19 |
20541-16-04 | M16X1.5 | 6 | 04 | 8 | 1.5 | 28.3 | 22 |
20541-16-05 | M16X1.5 | 8 | 05 | 8 | 1.5 | 28.9 | 22 |
20541-18-06 | M18X1.5 | 10 | 06 | 10 | 2 | 29.6 | 24 |
20541-20-08 | M20X1.5 | 12 | 08 | 12 | 2.5 | 32.8 | 27 |
20541-22-08 | M22X1.5 | 12 | 08 | 14 | 2.5 | 33.2 | 27 |
20541-24-10 | M24X1.5 | 16 | 10 | 16 | 2.5 | 35.9 | 30 |
20541-30-12 | M30X2 | 20 | 12 | 20 | 3 | 42.4 | 36 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20542-xx-xx;
