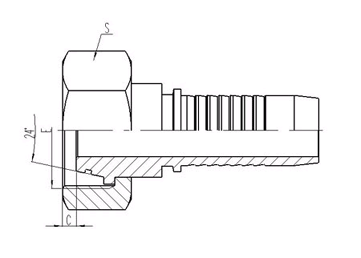

| E | HOSE BORE |
| DIMENSIONS | ||
PART NO | THREAD E | DN | DASH | TUBE O.D. | C | S |
20511-16-04T | M16X1.5 | 6 | 04 | 8 | 1.5 | 19 |
20511-18-04T | M18X1.5 | 6 | 04 | 10 | 2 | 22 |
20511-20-05T | M20X1.5 | 8 | 05 | 12 | 2.5 | 24 |
20511-20-06T | M20X1.5 | 10 | 06 | 12 | 2.5 | 24 |
20511-22-06T | M22X1.5 | 10 | 06 | 14 | 2.5 | 27 |
20511-24-08T | M24X1.5 | 12 | 08 | 16 | 3 | 30 |
20511-30-08T | M30X2 | 12 | 08 | 20 | 3 | 36 |
20511-30-10T | M30X2 | 16 | 10 | 20 | 3 | 36 |
20511-36-12T | M36X2 | 20 | 12 | 25 | 3 | 41 |
20511-42-14T | M42X2 | 22 | 14 | 30 | 5 | 50 |
20511-42-16T | M42X2 | 25 | 16 | 30 | 5 | 50 |
20511-52-20T | M52X2 | 32 | 20 | 38 | 6.5 | 60 |
20511-52-24T | M52X2 | 40 | 24 | 38 | 6.5 | 60 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20512-xx-xxT;
