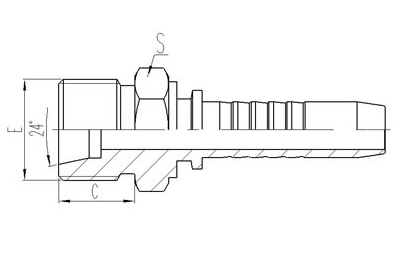

E | HOSE BORE | DIMENSIONS | |||||
PART NO | THREAD E | DN | DASH | TUBE O.D. | C | S | |
10511-14-04 | M14X1.5 | 6 | 04 | 6 | 13.5 | 17 | |
10511-16-04 | M16X1.5 | 6 | 04 | 8 | 13.5 | 17 | |
10511-18-04 | M18X1.5 | 6 | 04 | 10 | 13.5 | 19 | |
10511-20-05 | M20X1.5 | 8 | 05 | 12 | 13.5 | 22 | |
10511-20-06 | M20X1.5 | 10 | 06 | 12 | 13.5 | 22 | |
10511-22-05 | M22X1.5 | 8 | 05 | 14 | 14 | 24 | |
10511-22-06 | M22X1.5 | 10 | 06 | 14 | 14 | 24 | |
10511-24-08 | M24X1.5 | 12 | 08 | 16 | 14 | 27 | |
10511-30-10 | M30X2 | 16 | 10 | 20 | 19 | 32 | |
10511-30-12 | M30X2 | 20 | 12 | 20 | 19 | 32 | |
10511-36-12 | M36X2 | 20 | 12 | 25 | 20 | 38 | |
10511-36-16 | M36X2 | 25 | 16 | 25 | 20 | 38 | |
10511-42-16 | M42X2 | 25 | 16 | 30 | 20 | 46 | |
10511-42-20 | M42X2 | 32 | 20 | 30 | 20 | 46 | |
10511-52-20 | M52X2 | 32 | 20 | 38 | 22 | 55 | |
?: 1. ; 2. 10512-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10512-xx-xx;
