THREAD

TUBE.O.D.

O OXRING

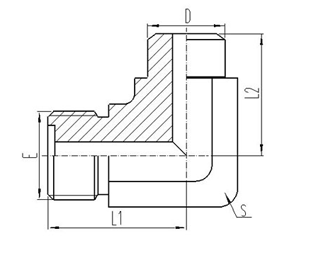

DIMENSIONS

PART NO.

E

E

L1

L2

D

S

1EW9-12-06

M12X1.25

6

8X1.9-N90

20.5

16.5

6

12

1EW9-14-08

M14X1.5

8

10X1.9-N90

22.5

17.5

8

14

1EW9-16-10

M16X1.5

10

11X1.9-N90

24

19.5

10

17

1EW9-18-12

M18X1.5

12

13X1.9-N90

26

25

12

19

1EW9-22-14

M22X1.5

14

16X2.4-N90

29

27

14

22

1EW9-27-18

M27X1.5

18

20X2.4-N90

32.5

29.5

18

27

1EW9-30-22

M30X1.5

22

24X2.4-N90

35.5

33.5

22

30

1EW9-36-28

M36X2

28

30X3.1-N90

42

39

28

36

1EW9-39-30

M39X2

30

32X3.1-N90

47.5

43

30

41

1EW9-42-34

M42X2

34

35X3.1-N90

49.5

43

34

41

1EW9-45-38

M45X2

38

38X3.1-N90

52.5

47.5

38

46

1EW9-52-42

M52X2

42

40X3.1-N90

57

50

42

50
