THREAD

TUBE.O.D.

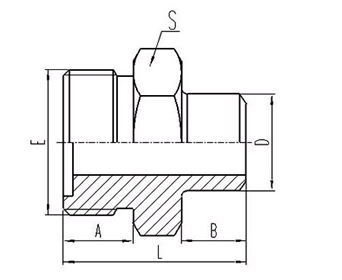

DIMENSIONS

PART NO.

E

D

A

B

D

L

S

1EW-12-06

M12X1.25

6

11

8

6

24

14

1EW-14-08

M14X1.5

8

11

8

8

25

17

1EW-16-10

M16X1.5

10

11

8

10

25

17

1EW-18-12

M18X1.5

12

11

12

12

29

19

1EW-22-14

M22X1.5

14

12

12

14

32.5

24

1EW-27-18

M27X1.5

18

13

12

18

35

30

1EW-30-22

M30X1.5

22

14

14

22

39

32

1EW-36-28

M36X2

28

16

16

28

43

38

1EW-39-30

M39X2

30

18

16

30

47

41

1EW-42-34

M42X2

34

20

16

34

49

46

1EW-45-38

M45X2

38

21

18

38

51

46

1EW-52-42

M52X2

42

22

18

42

55

55
