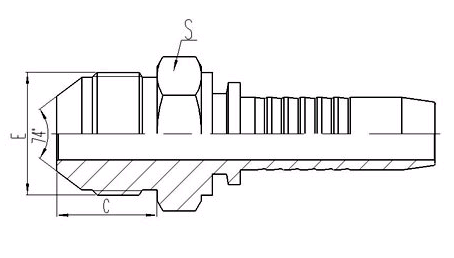

E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S

16711-04-04

7/16"X20

6

04

14

12

16711-05-04

1/2"X20

6

04

14

14

16711-05-05

1/2"X20

8

05

14

14

16711-06-04

9/16"X18

6

04

14

17

16711-06-05

9/16"X18

8

05

14

17

16711-06-06

9/16"X18

10

06

14

17

16711-08-06

3/4"X16

10

06

16.7

22

16711-08-08

3/4"X16

12

08

16.7

22

16711-10-06

7/8"X14

10

06

19.3

24

16711-10-08

7/8"X14

12

08

19.3

24

16711-10-10

7/8"X14

16

10

19.3

24

16711-12-08

1.1/16"X12

12

08

22

30

16711-12-10

1.1/16"X12

16

10

22

30

16711-12-12

1.1/16"X12

20

12

22

30

16711-12-16

1.1/16"X12

25

16

22

32

16711-14-10

1.3/16"X12

16

10

22.5

32

16711-14-12

1.3/16"X12

20

12

22.5

32

16711-16-12

1.5/16"X12

20

12

23

36

16711-16-16

1.5/16"X12

25

16

23

36

16711-20-16

1.5/8"X12

25

16

24.3

46

16711-20-20

1.5/8"X12

32

20

24.3

46

16711-24-20

1.7/8"X12

32

20

27.5

50

16711-24-24

1.7/8"X12

38

24

27.5

50

16711-32-32

2.1/2"X12

51

32

34

65
