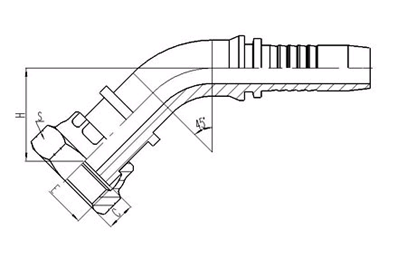

E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S | H |
24241-04-04 | 9/16"X18 | 6 | 04 | 8.5 | 19 | 23.4 |
24241-06-06 | 11/16"X16 | 10 | 06 | 10 | 22 | 27.4 |
24241-08-08 | 13/16"X16 | 12 | 08 | 11 | 27 | 30.4 |
24241-10-10 | 1"X14 | 16 | 10 | 13 | 30 | 34.9 |
24241-12-12 | 1.3/16"X12 | 20 | 12 | 15 | 36 | 39.5 |
24241-20-20 | 1.11/16"X12 | 32 | 20 | 15 | 50 | 46.1 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2424 2-xx-xx .
