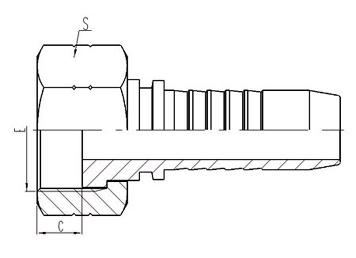

E | HOSE BORE | DIMENSIO NS | |||
PART NO. | THREAD E | DN | DASH | C | S |
24211-06-04T | 11/16"X16 | 6 | 04 | 10 | 22 |
24211-08-06T | 13/16"X16 | 10 | 06 | 11 | 27 |
24211-12-08T | 1.3/16"X12 | 12 | 08 | 15 | 36 |
24211-12-06T | 1.3/16"X12 | 10 | 06 | 15 | 36 |
24211-16-12T | 1.7/16"X12 | 20 | 12 | 14.8 | 41 |
24211-16-16T | 1.7/16"X12 | 25 | 16 | 14.8 | 41 |
24211-24-24T | 2"X12 | 38 | 24 | 14.8 | 60 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 24212 -xx-xxT;
Copyright©2014 Yuyao DingFeng HyDraulic Co.,Ltd. All Rights Reserved
Add: Industrial Park zhang Ting Yuyao, Powered byYishang Network.Inc
HYDRAULIC ADAPTER
