E

HOSE BORE

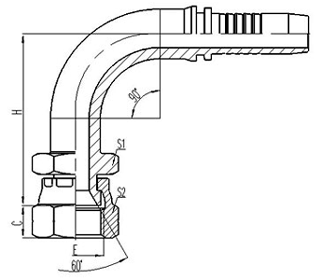

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S1

S2

H

29691-04-04

G1/4"X19

6

04

8

19

19

38

29691-06-06

G3/8"X19

10

06

9

22

22

45.8

29691-08-08

G1/2"X14

12

08

12

27

27

53

29691-10-10

G5/8"X14

16

10

11.5

30

30

61

29691-12-12

G3/4"X14

20

12

13.5

32

32

69

29691-16-16

G1"X11

25

16

16

41

41

76.5

29691-20-20

G1.1/4"X11

32

20

18.5

50

50

90

29691-24-24

G1.1/2"X11

40

24

19

55

55

105
