E

HOSE BORE

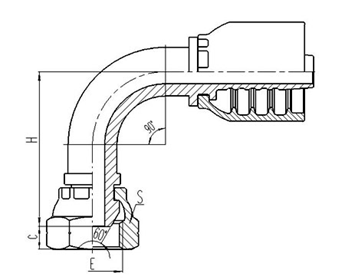

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S

H

22691-F-02-03

G1/8"X28

4

03

5.5

14

31.5

22691-F-04-04

G1/4"X19

6

04

5.5

19

36.5

22691-F-06-06

G3/8"X19

10

06

6.3

22

43

22691-F-08-08

G1/2"X14

12

08

7.5

27

51

22691-F-10-10

G5/8"X14

16

10

9.5

30

56

22691-F-12-12

G3/4"X14

20

12

10.9

32

66

22691-F-16-16

G1"X11

25

16

11.7

41

73.8

22691-F-20-20

G1.1/4"X11

32

20

11

50

87

22691-F-24-24

G1.1/4"X11

38

24

13

55

102

22691-F-32-32

G2"X11

51

32

16

70

125.3
