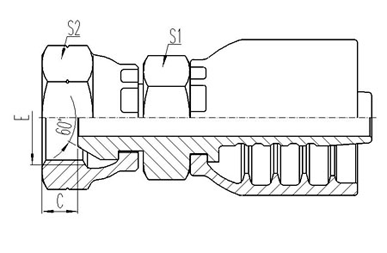

E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S1 | S2 |
22611-F-02-04 | G1/8"X28 | 6 | 04 | 5.5 | 14 | 14 |
22611-F-04-04 | G1/4"X19 | 6 | 04 | 5.5 | 19 | 19 |
22611-F-06-06 | G3/8"X19 | 10 | 06 | 6.3 | 22 | 22 |
22611-F-08-08 | G1/2"X14 | 12 | 08 | 7.5 | 27 | 27 |
22611-F-10-10 | G5/8"X14 | 16 | 10 | 9.5 | 30 | 30 |
22611-F-12-12 | G3/4"X14 | 20 | 12 | 10.9 | 32 | 32 |
22611-F-16-16 | G1"X11 | 25 | 16 | 11.7 | 41 | 41 |
22611-F-20-20 | G1.1/4"X11 | 32 | 20 | 11 | 50 | 50 |
22611-F-24-24 | G1.1/2"X11 | 38 | 24 | 13 | 55 | 55 |
22611-F-32-32 | G2"X11 | 51 | 32 | 16 | 70 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2269 2-xx-xx
