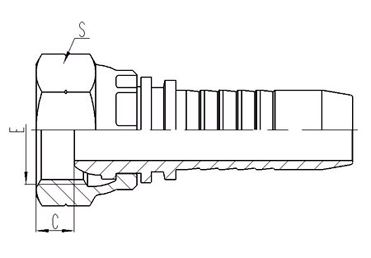

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
22211-04-04 | G1/4"X19 | 6 | 04 | 8 | 19 |
22211-06-06 | G3/8"X19 | 10 | 06 | 9 | 22 |
22211-08-08 | G1/2"X14 | 12 | 08 | 10.5 | 27 |
22211-10-10 | G5/8"X14 | 16 | 10 | 12 | 30 |
22211-12-08 | G3/4"X14 | 12 | 08 | 13.5 | 32 |
22211-12-12 | G3/4"X14 | 20 | 12 | 13.5 | 32 |
22211-16-12 | G1"X11 | 20 | 12 | 15.5 | 41 |
22211-16-16 | G1"X11 | 25 | 16 | 15.5 | 41 |
22211-20-20 | G1.1/4"X11 | 32 | 20 | 15.5 | 50 |
22211-24-24 | G1.1/2"X11 | 38 | 24 | 17.5 | 55 |
22211-32-32 | G2"X11 | 51 | 32 | 23 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2221 2-xx-xx.
