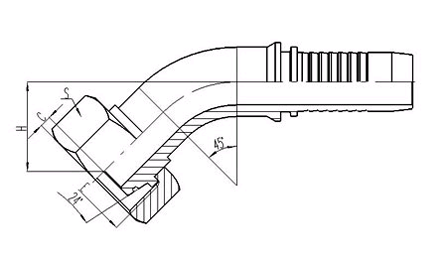

| E | HOSE BORE |
| DIMENSIONS | |||
PART NO | THREAD E | DN | DASH | TUBE O.D. | C | S | H |
20441-30-10T | M30X2 | 16 | 10 | 22 | 4 | 36 | 30.3 |
20441-45-20T | M45X2 | 32 | 20 | 35 | 5 | 55 | 40.8 |
20441-52-24T | M52X2 | 40 | 24 | 42 | 5.5 | 60 | 45.8 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20442-xx-xxT;
Copyright©2014 Yuyao DingFeng HyDraulic Co.,Ltd. All Rights Reserved
Add: Industrial Park zhang Ting Yuyao, Powered byYishang Network.Inc
HYDRAULIC ADAPTER
