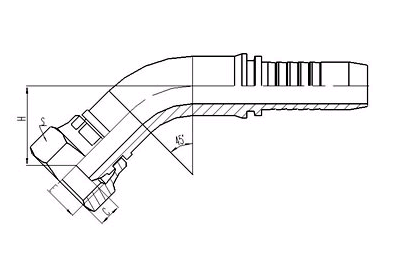

E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S | H |
20141-10-03 | M10X1 | 5 | 03 | 2.5 | 14 | 19.7 |
20141-14-04 | M14X1.5 | 6 | 04 | 4.5 | 19 | 21.3 |
20141-16-05 | M16X1.5 | 8 | 05 | 4.5 | 22 | 22.5 |
20141-18-06 | M18X1.5 | 10 | 06 | 4 | 24 | 24.2 |
20141-22-08 | M22X1.5 | 12 | 08 | 5 | 27 | 27.2 |
20141-26-12 | M26X1.5 | 20 | 12 | 5.5 | 32 | 33.2 |
20141-27-10 | M27X1.5 | 16 | 10 | 5.5 | 32 | 29.6 |
20141-30-12 | M30X1.5 | 20 | 12 | 6 | 36 | 33.5 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is E20142-xx-xx;
