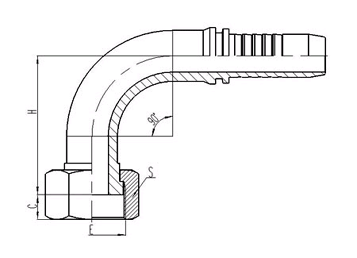

E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S | H |
20291-22-05T | M22X1.5 | 8 | 5 | 10 | 27 | 36.5 |
20291-22-06T | M22X1.5 | 10 | 6 | 10 | 27 | 38.8 |
20291-36-12T | M36X2 | 20 | 12 | 13 | 41 | 60 |
20291-36-14T | M36X2 | 22 | 14 | 13 | 41 | 61 |
20291-39-16T | M39X2 | 25 | 16 | 13 | 46 | 67.5 |
20291-42-16T | M42X2 | 25 | 16 | 15 | 50 | 67.6 |
20291-45-20T | M45X2 | 32 | 20 | 15 | 55 | 78.5 |
20291-52-20T | M52X2 | 32 | 20 | 17 | 60 | 78.5 |
20291-52-24T | M52X2 | 38 | 24 | 17 | 60 | 92 |
20291-60-24T | M60X2 | 38 | 24 | 17 | 70 | 93 |
20291-64-32T | M64X2 | 51 | 32 | 23 | 75 | 113 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is E20292-xx-xxT;
