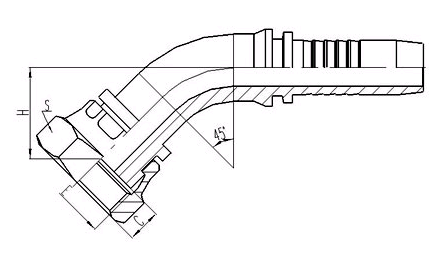

| E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S | H |
20241-14-04 | M14X1.5 | 6 | 04 | 8.5 | 19 | 18.4 |
20241-16-05 | M16X1.5 | 8 | 05 | 8.5 | 22 | 20 |
20241-18-06 | M18X1.5 | 10 | 06 | 8.5 | 24 | 21.4 |
20241-22-08 | M22X1.5 | 12 | 08 | 10 | 27 | 24 |
20241-27-10 | M27X1.5 | 16 | 10 | 10 | 32 | 26.4 |
20241-30-12 | M30X1.5 | 20 | 12 | 11 | 36 | 30 |
20241-42-20 | M42X2 | 32 | 20 | 15 | 50 | 36.6 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20242-xx-xx;
