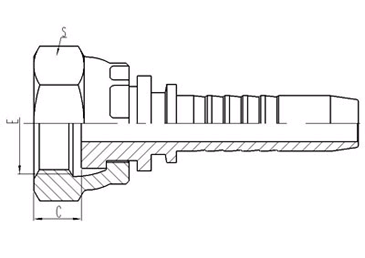

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
20211-10-03 | M10X1 | 5 | 3 | 6 | 14 |
20211-10-04 | M10X1 | 6 | 4 | 6 | 14 |
20211-12-03 | M12X1.25 | 4 | 3 | 8 | 17 |
20211-12-04 | M12X1.25 | 6 | 4 | 8 | 17 |
20211-14-04 | M14X1.5 | 6 | 4 | 8.5 | 19 |
20211-14-05 | M14X1.5 | 8 | 5 | 8.5 | 19 |
20211-14-08 | M14X1.5 | 12 | 8 | 8.5 | 19 |
20211-16-04 | M16X1.5 | 6 | 4 | 8 | 22 |
20211-16-05 | M16X1.5 | 8 | 5 | 8 | 22 |
20211-16-06 | M16X1.5 | 10 | 6 | 8 | 22 |
20211-18-05 | M18X1.5 | 8 | 5 | 8 | 24 |
20211-18-06 | M18X1.5 | 10 | 6 | 8 | 24 |
20211-18-08 | M18X1.5 | 12 | 8 | 8 | 24 |
20211-20-08 | M20X1.5 | 12 | 8 | 10 | 27 |
20211-22-08 | M22X1.5 | 12 | 8 | 10 | 27 |
20211-27-10 | M27X1.5 | 16 | 10 | 10 | 32 |
20211-27-12 | M27X1.5 | 20 | 12 | 10 | 32 |
20211-30-12 | M30X1.5 | 20 | 12 | 11 | 36 |
20211-33-14 | M33X2 | 22 | 14 | 13 | 41 |
20211-33-16 | M33X2 | 25 | 16 | 13 | 41 |
20211-36-16 | M36X2 | 25 | 16 | 13 | 41 |
20211-39-20 | M39X2 | 32 | 20 | 13 | 46 |
20211-60-32 | M60X2 | 51 | 32 | 17 | 70 |
20211-60-40 | M60X2 | 64 | 40 | 17 | 70 |
?: 1. ; 2. E20212-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is E20212-xx-xx;
