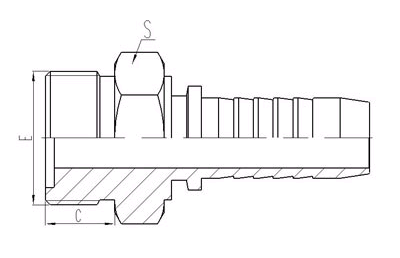

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
10311-14-04 | M14X1.5 | 6 | 04 | 11 | 17 |
10311-16-05 | M16X1.5 | 8 | 05 | 11 | 17 |
10311-16-08 | M16X1.5 | 12 | 08 | 11 | 17 |
10311-18-06 | M18X1.5 | 10 | 06 | 11 | 19 |
10311-22-06 | M22X1.5 | 10 | 06 | 12 | 24 |
10311-22-08 | M22X1.5 | 12 | 08 | 12 | 24 |
10311-27-10 | M27X1.5 | 16 | 10 | 13 | 30 |
10311-30-12 | M30X1.5 | 20 | 12 | 14 | 32 |
10311-36-14 | M36X2 | 22 | 14 | 16 | 38 |
10311-39-16 | M39X2 | 25 | 16 | 16 | 41 |
10311-45-20 | M45X2 | 32 | 20 | 20 | 46 |
10311-52-24 | M52X2 | 38 | 24 | 22 | 55 |
10311-64-32 | M64X2 | 51 | 32 | 27 | 65 |
?: 1. ; 2. 10312-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10312-xx-xx;
Copyright©2014 Yuyao DingFeng HyDraulic Co.,Ltd. All Rights Reserved
Add: Industrial Park zhang Ting Yuyao, Powered byYishang Network.Inc
HYDRAULIC ADAPTER
