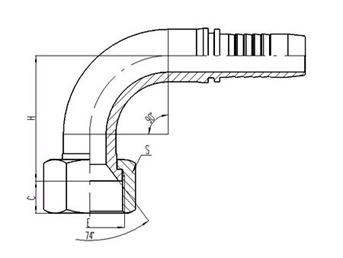

E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S | H |
20791-33-12T | M33X2 | 20 | 12 | 14 | 41 | 60 |
20791-36-12T | M36X2 | 20 | 12 | 14 | 41 | 60 |
20791-36-14T | M36X2 | 22 | 14 | 14 | 41 | 60 |
20791-39-16T | M39X2 | 25 | 16 | 13 | 46 | 67.5 |
20791-45-20T | M45X2 | 32 | 20 | 15 | 55 | 78.5 |
20791-52-24T | M52X2 | 38 | 24 | 17 | 60 | 92 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20792-xx-xxT;
