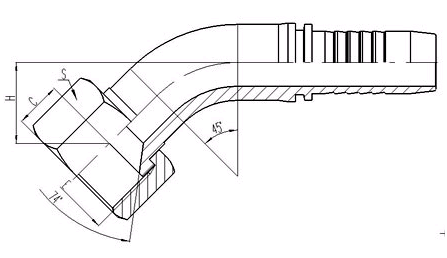

E THREAD E | HOSE BORE | DIMENSIONS | ||||
PART NO. | DN | DASH | C | S | H | |
20741-33-12T | M33X2 | 20 | 12 | 14 | 41 | 27.5 |
20741-36-14T | M36X2 | 22 | 14 | 14 | 41 | 27 |
20741-39-16T | M39X2 | 25 | 16 | 14 | 46 | 29.7 |
20741-45-20T | M45X2 | 32 | 20 | 15 | 55 | 33.8 |
20741-52-24T | M52X2 | 38 | 24 | 17 | 60 | 37.7 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20742-xx-xxT;
