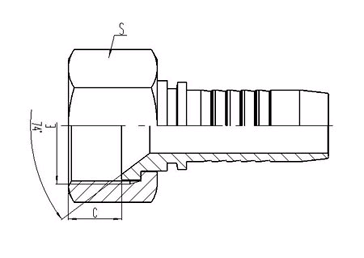

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
20711-20-06T | M20X1.5 | 10 | 06 | 10 | 24 |
20711-22-06T | M22X1.5 | 10 | 06 | 10 | 27 |
20711-24-08T | M24X1.5 | 12 | 08 | 11 | 30 |
20711-30-10T | M30X1.5 | 16 | 10 | 11 | 36 |
20711-33-12T | M33X2 | 20 | 12 | 14 | 41 |
20711-36-12T | M36X2 | 20 | 12 | 14 | 41 |
20711-36-14T | M36X2 | 22 | 14 | 14 | 41 |
20711-39-16T | M39X2 | 25 | 16 | 14 | 46 |
20711-42-16T | M42X2 | 25 | 16 | 15 | 50 |
20711-45-20T | M45X2 | 32 | 20 | 15 | 55 |
20711-52-24T | M52X2 | 38 | 24 | 17 | 60 |
20711-64-32T | M64X2 | 51 | 32 | 23 | 75 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20712-xx-xxT;
