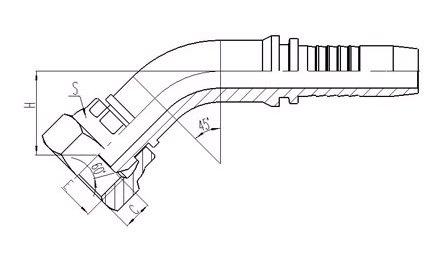

E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S | H |
20641-14-04 | M14X1.5 | 6 | 04 | 5.5 | 19 | 20.6 |
20641-16-05 | M16X1.5 | 8 | 05 | 5.5 | 22 | 21.8 |
20641-18-06 | M18X1.5 | 10 | 06 | 5.6 | 24 | 23.2 |
20641-22-08 | M22X1.5 | 12 | 08 | 6 | 27 | 26.8 |
20641-27-10 | M27X1.5 | 16 | 10 | 6 | 32 | 29.2 |
20641-30-12 | M30X1.5 | 20 | 12 | 6 | 36 | 33.5 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is E20642-xx-xx;
