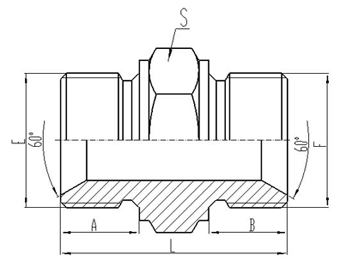

THREAD | DIMENSIONS | |||||
PART NO. | E | F | A | B | L | S |
1M-10 | M10X1 | M10X1 | 8 | 8 | 24 | 14 |
1M-12 | M12X1.5 | M12X1.5 | 10 | 10 | 28 | 17 |
1M-14 | M14X1.5 | M14X1.5 | 11 | 11 | 30 | 19 |
1M-16 | M16X1.5 | M16X1.5 | 12 | 12 | 32 | 22 |
1M-18 | M18X1.5 | M18X1.5 | 12 | 12 | 34 | 24 |
1M-18-22 | M18X1.5 | M22X1.5 | 12 | 14 | 38 | 27 |
1M-22 | M22X1.5 | M22X1.5 | 14 | 14 | 38 | 27 |
1M-22-27D | M22X1.5 | M27X1.5 | 14 | 16 | 43 | 32 |
1M-26 | M26X1.5 | M26X1.5 | 16 | 16 | 45 | 32 |
1M-26-30D | M26X1.5 | M30X1.5 | 16 | 18 | 47 | 36 |
1M-27 | M27X2 | M27X2 | 16 | 16 | 45 | 32 |
1M-27D | M27X1.5 | M27X1.5 | 16 | 16 | 45 | 32 |
1M-30 | M30X2 | M30X2 | 18 | 18 | 49 | 36 |
1M-30D | M30X1.5 | M30X1.5 | 18 | 18 | 49 | 36 |
