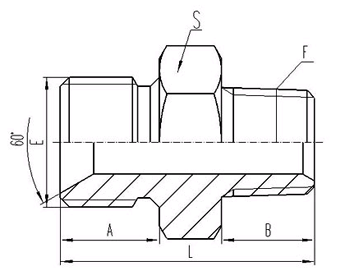

THREAD

DIMENSIONS

PART NO.

E

F

A

B

S

L

1BN-02

G1/8"X28

Z1/8"X27

10

10.5

14

26

1BN-04-02

G1/4"X19

Z1/8"X27

12

10.5

19

28

1BN-04

G1/4"X19

Z1/4"X18

12

15

19

32

1BN-04-06

G1/4"X19

Z3/8"X18

12

16

19

33

1BN-04-08

G1/4"X19

Z1/2"X14

12

19.5

22

39

1BN-06-04

G3/8"X19

Z1/4"X18

13.5

15

22

35.5

1BN-06

G3/8"X19

Z3/8"X18

13.5

16

22

36.5

1BN-06-08

G3/8"X19

Z1/2"X14

13.5

19.5

24

40.5

1BN-08-06

G1/2"X14

Z3/8"X18

16

16

27

41

1BN-08

G1/2"X14

Z1/2"X14

16

19.5

27

45

1BN-08-12

G1/2"X14

Z3/4"X14

16

19.5

30

45

1BN-08-16

G1/2"X14

Z1"X11.5

16

25.5

36

51

1BN-10-08

G5/8"X14

Z1/2"X14

17.5

19.5

30

46.5

1BN-10-12

G5/8"X14

Z3/4"X14

17.5

19.5

30

46.5

1BN-12-04

G3/4"X14

Z1/4"X18

18.5

15

32

43.5

1BN-12-06

G3/4"X14

Z3/8"X18

18.5

16

32

44.5

1BN-12-08

G3/4"X14

Z1/2"X14

18.5

19.5

32

48.5

1BN-12

G3/4"X14

Z3/4"X14

18.5

19.5

32

48.5

1BN-12-16

G3/4"X14

Z1"X11.5

18.5

25.5

36

53.5

1BN-16-08

G1"X11

Z1/2"X14

20.5

20

41

52.5

1BN-16-12

G1"X11

Z3/4"X14

20.5

19.5

41

52.5

1BN-16

G1"X11

Z1"X11.5

20.5

25.5

41

58

1BN-16-20

G1"X11

Z1.1/4"X11.5

20.5

26.5

46

58.5

1BN-20-16

G1.1/4"X11

Z1"X11.5

20.5

25.5

50

59.5

1BN-20

G1.1/4"X11

Z1.1/4"X11.5

20.5

26.5

50

60.5

1BN-20-24

G1.1/4"X11

Z1.1/2"X11.5

20.5

27.5

50

61.5

1BN-24-20

G1.1/2"X11

Z1.1/4"X11.5

23

26.5

55

63

1BN-24

G1.1/2"X11

Z1.1/2"X11.5

23

27.5

55

66

1BN-24-32

G1.1/2"X11

Z2"X11.5

23

27.5

65

66

1BN-32-20

G2"X11

Z1.1/4"X11.5

25.5

26.5

70

67.5

1BN-32-24

G2"X11

Z1.1/2"X11.5

25.5

27.5

70

68.5

1BN-32

G2"X11

Z2"X11.5

25.5

27.5

70

69.5
