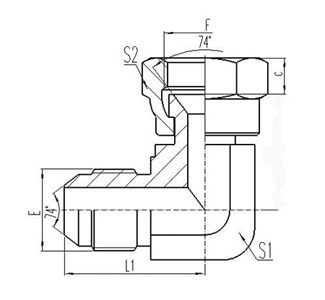

THREAD |
TUBE.O.D. |
DIMENSIONS | ||||
|
PART NO. |
E |
F |
D |
L1 |
C |
S1 |
S2 |
|
2Q9-14 |
M14X1.5 |
M14X1.5 |
8 |
30.2 |
8.5 |
14 |
19 |
|
2Q9-16 |
M16X1.5 |
M16X1.5 |
10 |
32.5 |
8 |
16 |
22 |
|
2Q9-18 |
M18X1.5 |
M18X1.5 |
12 |
34 |
8 |
19 |
24 |
|
2Q9-22 |
M22X1.5 |
M22X1.5 |
14 |
37.5 |
10 |
22 |
27 |
|
2Q9-27 |
M27X1.5 |
M27X1.5 |
18 |
41.5 |
10 |
27 |
32 |
|
2Q9-30 |
M30X1.5 |
M30X1.5 |
20 |
45.8 |
11 |
30 |
36 |
|
2Q9-33 |
M33X2 |
M33X2 |
22 |
49.5 |
13 |
33 |
41 |
|
2Q9-36 |
M36X2 |
M36X2 |
25 |
51.5 |
13 |
36 |
41 |
|
2Q9-39 |
M39X2 |
M39X2 |
28 |
55.5 |
13 |
41 |
46 |
|
2Q9-45 |
M45X2 |
M45X2 |
34 |
62.5 |
15 |
48 |
55 |
Note: In case if you are interested to order the adapter in complete set with sleeve and nut , it is necessary to insert suffix ¡°RN¡± after our part No. , for example 2Q9-14RN,The sleeve No. is ANB500-Q,and the nut No. is ANB200-Q
