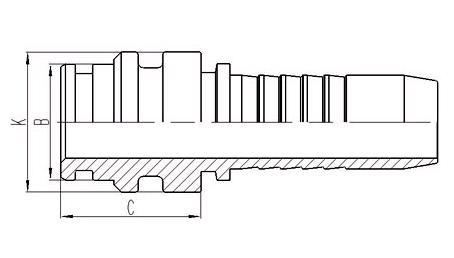

HOSE BORE | DIMENSIONS | ||||
PART NO. | DN | DASH | C | K | B |
67011-04-04 | 6 | 04 | 28 | 14.9 | 9.9 |
67011-06-06 | 10 | 06 | 28 | 19.9 | 13.9 |
67011-08-08 | 12 | 08 | 28 | 23.9 | 17.9 |
67011-12-12 | 20 | 12 | 28 | 28.9 | 23.9 |
67011-16-16 | 25 | 16 | 33 | 38.8 | 30.9 |
67011-20-20 | 32 | 20 | 33 | 45.9 | 37.9 |
67011-24-24 | 38 | 24 | 36.3 | 54.9 | 46.9 |
67011-32-32 | 51 | 32 | 36.3 | 63.9 | 55.9 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 67012-xx-xx;
