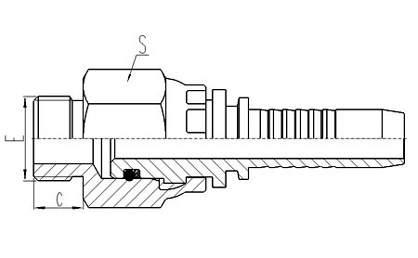

| E | HOSE BORE | DIMENSIONS | ||
PART NO. | THREAD E | DN | DASH | C | S |
16011SW-04-04 | 7/16"X20 | 6 | 04 | 9.1 | 19 |
16011SW-06-05 | 9/16"X18 | 8 | 05 | 9.9 | 22 |
16011SW-06-06 | 9/16"X18 | 10 | 06 | 9.9 | 22 |
16011SW-08-06 | 3/4"X16 | 10 | 06 | 11.1 | 27 |
16011SW-08-08 | 3/4"X16 | 12 | 08 | 11.1 | 27 |
16011SW-10-08 | 7/8"X14 | 12 | 08 | 12.7 | 27 |
16011SW-10-10 | 7/8"X14 | 16 | 10 | 12.7 | 27 |
16011SW-12-10 | 1.1/16"X12 | 16 | 10 | 15.1 | 32 |
16011SW-12-12 | 1.1/16"X12 | 20 | 12 | 15.1 | 32 |
16011SW-16-16 | 1.5/16"X12 | 25 | 16 | 15.1 | 41 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 16012SW -xx-xx;
