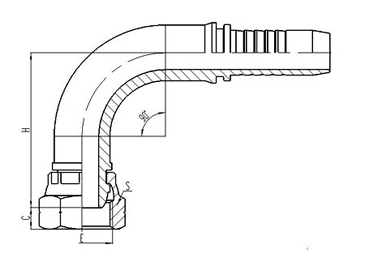

E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S

H

22191-04-04

G1/4"X19

6

04

4

19

38.5

22191-06-06

G3/8"X19

10

06

5

22

44.8

22191-08-08

G1/2"X14

12

08

6

27

52

22191-10-10

G5/8"X14

16

10

8

30

57.5

22191-12-12

G3/4"X14

20

12

9

32

68

22191-16-16

G1"X11

25

16

10.5

41

75

22191-20-20

G1.1/4"X11

32

20

10

50

89

22191-24-24

G1.1/2"X11

38

24

11

55

104

22191-32-32

G2"X11

51

32

15

70

125.3
