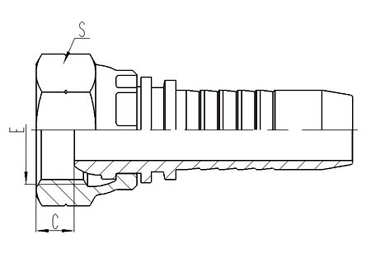

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
22111-02-04 | G1/8"X28 | 6 | 04 | 2 | 14 |
22111-04-04 | G1/4"X19 | 6 | 04 | 4 | 19 |
22111-06-06 | G3/8"X19 | 10 | 06 | 5 | 22 |
22111-08-08 | G1/2"X14 | 12 | 08 | 6 | 27 |
22111-08-10 | G1/2"X14 | 16 | 10 | 6 | 27 |
22111-10-10 | G5/8"X14 | 16 | 10 | 8 | 30 |
22111-12-12 | G3/4"X14 | 20 | 12 | 9 | 32 |
22111-16-16 | G1"X11 | 25 | 16 | 10.5 | 41 |
22111-20-20 | G1.1/4"X11 | 32 | 20 | 10 | 50 |
22111-24-24 | G1.1/2"X11 | 38 | 24 | 11 | 55 |
22111-32-32 | G2"X11 | 51 | 32 | 15 | 70 |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2211 2-xx-xx .
