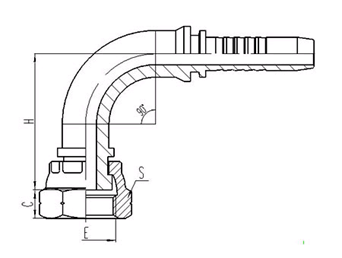

Product Description::


E

HOSE BORE

DIMENSION S

PART NO.

THREAD E

DN

DASH

C

S

H

22291-04-04

G1/4"X19

6

04

8

19

34

22291-06-05

G3/8"X19

8

05

9

22

38.5

22291-06-06

G3/8"X19

10

06

9

22

40.8

22291-08-08

G1/2"X14

12

08

10.5

27

48

22291-10-10

G5/8"X14

16

10

12

30

54

22291-12-12

G3/4"X14

20

12

13.5

32

63.5

22291-16-16

G1"X11

25

16

15.5

41

70

22291-20-20

G1.1/4"X11

32

20

15.5

50

82.5

22291-24-24

G1.1/2"X11

38

24

17.5

55

97.5

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2229 2-xx-xx.
