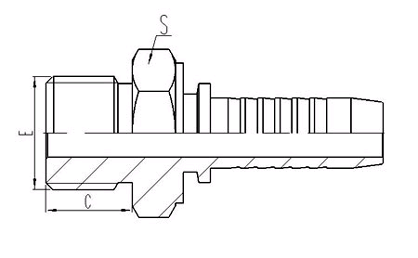

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
12211-04-04 | G1/4"X19 | 6 | 04 | 11 | 19 |
12211-04-06 | G1/4"X19 | 10 | 06 | 11 | 19 |
12211-06-06 | G3/8"X19 | 10 | 06 | 12 | 22 |
12211-08-06 | G1/2"X14 | 10 | 06 | 14 | 27 |
12211-08-08 | G1/2"X14 | 12 | 08 | 14 | 27 |
12211-10-10 | G5/8"X14 | 16 | 10 | 16 | 30 |
12211-12-12 | G3/4"X14 | 20 | 12 | 16 | 32 |
12211-16-16 | G1"X11 | 25 | 16 | 18.5 | 41 |
?: 1?; 2? 1221 2-xx-xx .
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 1221 2-xx-xx .
